Calibration Client Basic turns a PC into a bit-perfect test pattern generator for ColourSpace - as a floating patch window on any display connected to the PC.
Calibration Client Full adds output through an AJA or Blackmagic video card or Thunderbolt unit, for SDI and HDMI displays.

  • ColourSpace INF/XPT/PRO/CAL/LTE & HTX/HTP/HTL & DPS/ZRO
  • ColourSpace Manufacturer Specific PRO/LTE & HTP/HTL
  • Windows (Mac and potentially Linux to follow)
  • Exact 8-bit & 10-bit patches
  • SDR and HDR (PQ) in the patch window
  • Runs on the ColourSpace PC, or any PC on the same network
  • ColourSpace's inbuilt Test Patterns, drawn at the window's resolution
  • Light Illusion's display set-up images, plus your own TIFF, PNG, TGA & JPG images
  • HDR Steps patterns, and an A/V (lip-sync) test with sound
  • Signal checks - chroma subsampling, overscan / scaling and bit depth
  • Live demos - Lip Sync, Sound Check, Motion and HDR10, at the output's own resolution and frame rate
  • Check a calibration LUT outside ColourSpace - patches sent through a .cube LUT
  • Impossible settings refused, with the reason shown
  • Windows colour checks - calibration curves neutralised while running
  • AJA and BMD output (PCIe cards or Thunderbolt units) 10-bit SDI & HDMI, SDR, HDR PQ & HLG, up to 4K 60Hz
  • Video clip playback with sound, in the patch window or through the video card
  • No video card or Thunderbolt unit included
Calibration Client Options Ex. VAT
Local currency payments accepted
Calibration Client Full includes the ability to integrate with AJA/BMD hardware
Calibration Client Basic is just the software TPG option

Overview

Calibration Client can be used with all ColourSpace versions with profiling capabilities, including the ZRO licence version of ColourSpace for verification of any display, as well as all main versions of ColourSpace for full profiling and LUT based calibration.

ColourSpace controls Calibration Client directly, via its Network Server hardware option, so it can generate any required colour patch, either as a managed sequence for automated profiling, or manually selected for manual display calibration adjustment.

Calibration Client has been rewritten from scratch by Light Illusion as a modern native application, replacing the original Java version.

  • Exact values. The code values ColourSpace asks for are the values written to the screen, in 8-bit or 10-bit - with no colour management, scaling or conversion on the way.
  • HDR in a window. With Windows HDR turned on, the patch window sends 10-bit PQ patches, so an HDR display can be profiled from a PC, without any extra hardware.
  • Video cards. With the Hardware option, patches go out of the SDI and HDMI outputs of an AJA or Blackmagic video card or Thunderbolt unit, as professional 10-bit video, with the correct SDR or HDR signalling.
  • Nothing is quietly changed. If a setting cannot be done - an output mode Windows is not set up for, or a format the video card cannot send - Calibration Client refuses it and shows the reason. It never quietly sends something different, so nothing is measured in a mode you did not choose.
  • Nothing in the measurement. The on-screen controls, menu button and mouse pointer all disappear as soon as ColourSpace sends a patch.
  • Windows watched. Windows has several settings that silently alter what reaches the display. Calibration Client checks them on the patch display every few seconds, warns when one is active, and sets any loaded calibration curves (VCGT) neutral while it runs - putting them back exactly afterwards.
  • Simple connection. Calibration Client finds ColourSpace on the network by itself, and reconnects by itself if the connection drops.

Setup

What You Need

  • A Windows 10 or Windows 11 PC, with the display to be calibrated connected to it
    (This can be the ColourSpace PC itself, using an extended desktop, or any other PC on the same network)
  • ColourSpace, with the probe connected to the ColourSpace PC
  • For video card output, the Hardware option, and an AJA or Blackmagic video card or Thunderbolt unit, with its manufacturer's driver installed (see Video Cards)

Calibration Client does not keep the display or the PC awake, so it can never be the cause of burn-in on an OLED, or any other display. Before a profiling run, make sure the PC's screensaver, display turn-off and sleep settings will not start during it - and turn them back on afterwards.

Installing

Calibration Client is a single program file, with nothing to install - download it from Customer Downloads, and copy it to wherever you want it on the PC.

Licence

On first start, open the menu (see below), and enter your product key in the Licence section, then select Activate. The Licence section shows the licence level, and the registered key.

  • Reactivate - picks up changes made to your licence, such as the Hardware option being added
  • Deactivate - frees the licence from this PC, so it can be activated on another

Without a licence the test patterns and images still work, so the program can be tried with your display, but ColourSpace's patches and video card output are off.

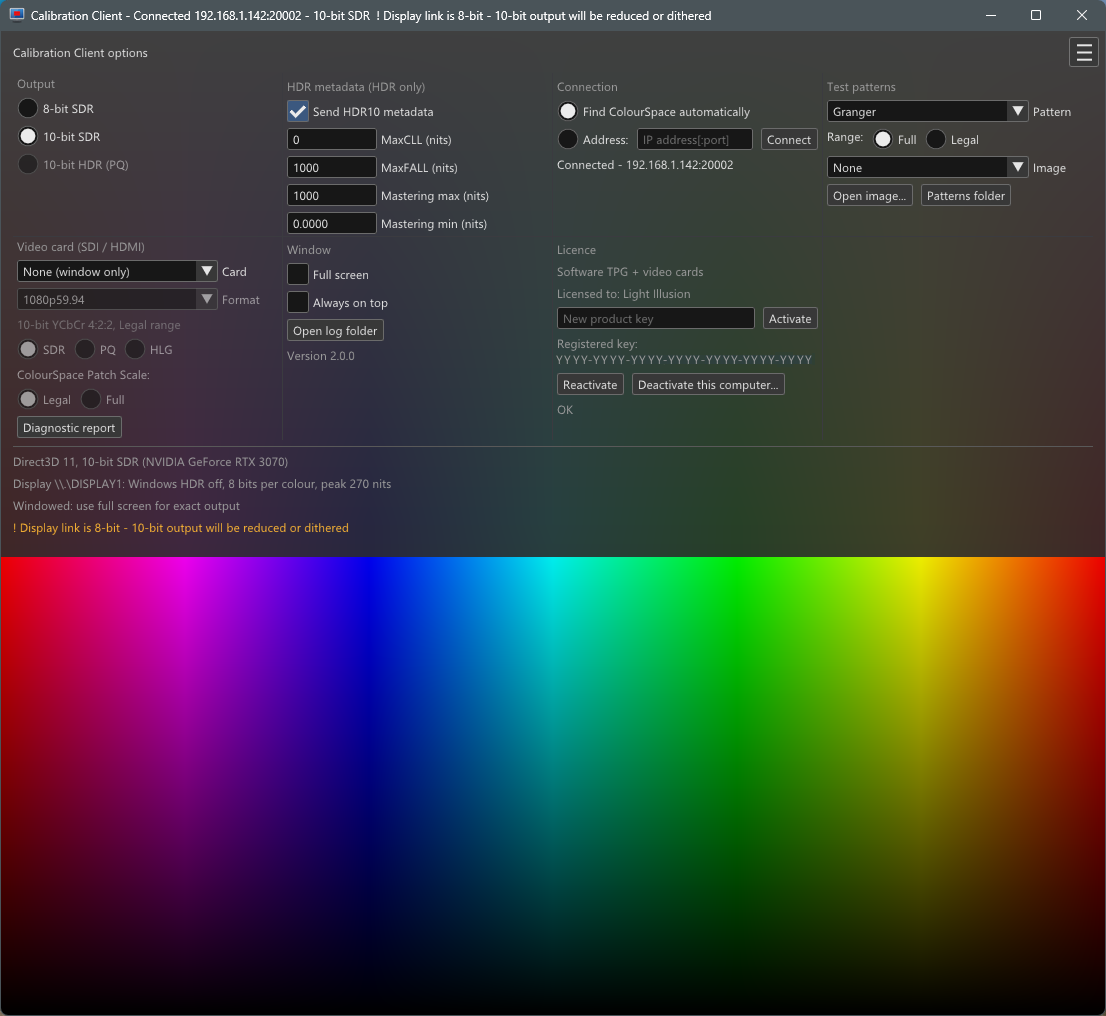

On-screen Controls

Move the mouse over the patch window and a menu button appears at the top right, as with ColourSpace's graphs. Select it to open the options bar, with these sections:

  • Output - 8-bit SDR, 10-bit SDR or 10-bit HDR (PQ)
    (A mode that cannot be used right now is greyed out - hover the mouse over it to see why)
  • HDR metadata - the HDR10 metadata sent in HDR mode
  • Connection - find ColourSpace automatically, or type its address
  • Test patterns - the built-in patterns, calibration images and your own images
  • Video card - AJA and Blackmagic output (PCIe cards or Thunderbolt units), with the Hardware option
  • Information - display information, and a support file to send with any support request
  • Licence - product key and licence level
  • Window - full screen, always on top, neutralise calibration curves, and the log folder

The options bar closes by itself after 20 seconds without use, and the controls, menu button and mouse pointer all disappear as soon as ColourSpace sends a patch, so none of them can end up in a measurement. Everything set is remembered for next time.

Keyboard

  • Double-click, F11 or Alt+Enter - full screen on/off, on the display the window is on
  • Esc - leave full screen
  • M - next output mode
  • P - next built-in pattern
  • T - always on top on/off
  • I - show/hide the information text

ColourSpace Integration

All Calibration Client patch operation is controlled via the Hardware Options menu, accessed via the Profiling window, using ColourSpace's Network Server hardware option.

For a User Guide on the workflow used for display calibration see the 3D LUT Calibration guide, combined with the specific Calibration Client information contained within this page.

Initial Setup

  • Open ColourSpace, and open a Profiling window, select Hardware Options, and select Network Server from the Hardware drop-down list
  • Select Connect - the IP address and Port details of ColourSpace show within the Network Server Options
  • Start Calibration Client on the PC connected to the display to be profiled
    (Calibration Client finds ColourSpace on the network by itself and connects. If it does not, open the Connection section of the menu and type the address ColourSpace shows)
  • Move the Calibration Client window onto the display to be profiled, and double-click it to go full screen
  • Using Calibration Patches select the desired patch option to use for profiling
    (Auto uses the patch settings defined within the ColourSpace Settings window
    Note: The keyboard 'O' key can be used within the Manual Measure and Hardware menus to quickly Disable/Enable the TPG)

Note: If using separate PCs, make sure both are connected to the same network. A wired Ethernet network is preferred, as Wi-Fi can cause small delays. If there are any connection issues, check for Firewall settings preventing the connection.

Until the first patch, an information text in the window shows the connection status and the output in use. It disappears with the first patch, so it can never affect a measurement. If ColourSpace closes or the connection drops, Calibration Client goes back to waiting, and reconnects by itself.

Settings

Calibration Client shows exactly the values ColourSpace asks for, or refuses with the reason. It never rescales or converts the values on the way.

  • Bit depth - set the ColourSpace Settings Resolution bit depth to match the Calibration Client output mode: 8-bit for 8-bit SDR, 10-bit for the 10-bit modes
    (If ColourSpace sends 10-bit values to the 8-bit mode, Calibration Client says so in its window title and information text)
  • Range - ColourSpace sets Legal, Full or Extended values itself, via Patch Scale (see TPG Operation). For the patch window, set the display's input range to match

Profiling Operation

To activate Calibration Client navigate to the desired profiling mode within ColourSpace - Manual Measure, or Display Characterisation.

The output of Calibration Client will mimic the colour displayed, using the patch settings defined via the Hardware Options and Settings menus.

Profiling can then be performed as normal, using the probe connected to the ColourSpace PC, with Calibration Client displaying the required patches on the display being profiled.

LUT Use

After profiling, a Calibration LUT can be generated as normal within ColourSpace LUT Tools, and used where required, either within a grading system, a LUT box, or uploaded directly into a suitable display.

Checking a LUT in Calibration Client

Calibration Client can send everything it shows through a calibration LUT exported from ColourSpace - a way to check the exported LUT file itself, independently of ColourSpace's own Active LUT and of uploading it into a display. Export the LUT from ColourSpace as a .cube file, load it with Load LUT... in the Test patterns section of the menu, turn on Apply LUT, and verify through it.

  • Everything goes through the LUT: ColourSpace's patches, test patterns, calibration images, your own images, video clips and the background - in the patch window and on a video card alike, which always use the same setting
  • 1D, 3D, or a 1D shaper followed by a 3D LUT (3D up to 129 points), worked out with tetrahedral interpolation, as most external LUT systems use, at full precision, and rounded once to the output's code values
  • The LUT works on the values as sent, with 0-1 covering the full code range, so export it from ColourSpace for the range ColourSpace is sending in (its Patch Scale)
  • While it is on, the LUT's name is shown in the menu in the warning colour, the window title says it is applied, and the Display Information, support file and video card report name it. If it was on when Calibration Client closed, it is on again when it starts, with the same warning
    (Turn the LUT off, or remove it, before profiling - a profile measured through it includes the LUT. With it off, values are sent untouched as always)
  • A file that cannot be read is refused, with the reason, and the LUT in use stays as it was

Calibration Guides

3D LUT Calibration Manual Calibration

Output Modes & HDR

The patch window has three output modes, set in the Output section of the menu, or with the M key:

  • 8-bit SDR - RGB 8-bit, Rec.709/sRGB
    (Needs Windows HDR off for that display)
  • 10-bit SDR - RGB 10-bit, Rec.709/sRGB
    (Needs Windows HDR off, and a 10-bit link to the display)
  • 10-bit HDR (PQ) - RGB 10-bit, Rec.2020, ST2084 (PQ)
    (Needs Windows HDR on for that display - Use HDR in Windows Settings, System, Display)

A mode that cannot work with the current Windows set-up is refused with the reason, never swapped for something else. Anything that would make the output inaccurate - such as HDR mode while Windows HDR is off - is shown in the window title, and in the information text.

Output & HDR

HDR Metadata

In HDR mode, the HDR10 metadata - MaxCLL, MaxFALL, and the mastering display's maximum and minimum brightness - can be set in the HDR metadata section of the menu. Windows passes it to the display.

From display sets the mastering maximum and minimum to the peak and black the display declares in its EDID (or that Windows reports for it). Declared figures are the display's own statement - actual capabilities can vary, and if the true peak is below the declared peak, measured results will differ.

For professional HDR displays set to HDR mode manually, the metadata values should not matter, as there is no tone mapping. With consumer TVs, which use tone mapping, the TV will respond differently to different metadata values - set them as needed to see how the TV responds. Choose the TV's most accurate picture mode (such as Cinema or Filmmaker Mode) before measuring, and turn off any dynamic tone mapping where the TV allows it.

Exact Output from a PC

As with any software test pattern generator, the PC's own colour settings sit between Calibration Client and the display. For exact output:

  • Use full screen
  • Load no ICC profile or calibration (VCGT) on that display - or leave Neutralise calibration curves on (the default, in the Window section of the menu): the display's VCGT is set neutral while Calibration Client runs, and put back exactly afterwards
    (See What is wrong with ICCs?)
  • Turn off Windows Night Light, and Automatically manage color for apps for that display
    (Windows Settings, System, Display - Color profile. Windows can switch this back on by itself after graphics card settings are changed, so check it again after any change)
  • Set the graphics card's output to RGB, Full range
    (A YCbCr link, often chosen for 4K60 over HDMI, converts every patch - use DisplayPort, or a lower refresh rate)
  • Leave the graphics driver's colour settings at their defaults
    (NVIDIA: Override to reference mode - this also bypasses any VCGT)
  • Turn off graphics card dithering, if the driver allows

Windows Colour Checks

Calibration Client checks the display the patch window is on every few seconds, and whenever the window moves to another display. Anything that would alter the patches is shown in the window title and in the information text - never over the patches:

  • Night Light on - every patch is shifted warm
  • A Windows Color filter (Accessibility) on - such as greyscale or inverted, easily switched on by accident with Windows+Ctrl+C
  • Automatically manage color for apps (Auto Color Management) converting the display's colours
  • A YCbCr link to the display, rather than RGB
  • Windows HDR on in an SDR mode (SDR patches are remapped by Windows), or off in HDR mode
  • An 8-bit link in a 10-bit mode, where the 10-bit values are reduced or dithered
  • Calibration curves (VCGT) loaded, with Neutralise calibration curves off
  • Windows calibration data (MHC2) applied in HDR or Auto Color Management - for example from the Windows HDR Calibration app
  • On a laptop's own screen, Change brightness based on content, or adaptive brightness from the light sensor - the brightness follows the picture or the room
  • Running in a Remote Desktop session - the patches go to the remote session, not to the display
  • On NVIDIA graphics cards, Limited range (16-235) output - read directly from NVIDIA's driver
  • On AMD graphics cards in HDR, with an AMD FreeSync Premium Pro display, a reminder to check that AMD's FreeSync Color Accuracy is off in AMD Software's display settings
    (It changes every HDR colour, and AMD driver updates can turn it back on. AMD's driver setting cannot be read, so Calibration Client recognises the display from its EDID and reminds you)

On other makes of graphics card the output range cannot be read, so needs checking by hand - as do the graphics driver's own picture adjustments (such as NVIDIA's Digital Vibrance), and dithering, on any card.

Range Check

No PC, or any other source, can read the display's own Full/Legal setting - it is a setting inside the display. Calibration Client checks the two things that can be known, and warns if they are likely not to match:

  • What the PC sends - read from the graphics driver on NVIDIA cards
  • How the display will take it, from what the display declares about itself (its EDID):
    (DisplayPort, and HDMI displays that declare they follow the PC's range signal, always match whatever is sent. HDMI displays that ignore the signal take TV formats, such as 1920x1080 or 3840x2160 at 24-60 Hz, as Legal, and PC formats as Full. DVI is always Full)

On other makes of graphics card, where the PC's range cannot be read, Calibration Client says when the display's range setting needs checking by hand.

Display Information & Support File

With any active licence, the Information section of the menu offers:

  • Display information - the link to the display (graphics card, connection, mode, format, bit depth, Windows HDR, NVIDIA settings), the range check, Windows' colour settings, and the display's EDID: name, formats, deep colour, the range signal, colorimetry, HDR support and declared luminance, and Dolby Vision
    (Shown only while the menu is open, so never in a measurement)
  • Save support file - the same information, with the settings, the display's EDID data and the session log, in one text file to send with any support request
    (The product key is not included)

Neutralise Calibration Curves

Calibration curves loaded into the graphics card - by an ICC profile, or directly by a program such as SpaceMatch - alter every patch. With Neutralise calibration curves on (the default, in the Window section of the menu), Calibration Client sets the patch display's curves neutral while it runs, and puts them back exactly:

  • When the option is turned off
  • When the window moves to another display (that display's curves are then neutralised instead)
  • When Calibration Client closes - and, should it ever end unexpectedly, the next time it starts

If another program loads curves again while Calibration Client is running, they are neutralised again within a few seconds, with a warning to close or disable that program. Only the patch display is affected - the PC's other displays keep their curves.

Note: on NVIDIA graphics cards, Override to reference mode bypasses the curves altogether, so Windows can show curves as loaded that are not actually reaching the display.

For a signal path that bypasses the PC's display settings altogether, use a video card with the Hardware option, or PiTPG.

Patterns & Images

All patterns and images are chosen in the Test patterns section of the menu, and work in every output mode, including HDR and video card output (the HDR patterns need an HDR output). Any patch from ColourSpace ends the pattern or image, so measuring always shows patches.

Patterns & Images

Test Patterns

The same Test Patterns as ColourSpace's Manual Measure window - Probe Alignment, Granger, Contrast, Brightness, ANSI 1 and 2, Corner-Box 1 and 2, the black to white ramps, and FALD. Calibration Client draws each pattern itself at the window's resolution, so it is sharp at any size, at 10-bit precision in the 10-bit modes. Range sets the levels to match ColourSpace's Patch Scale - Full or Legal. Each pattern fills the window, so resize the window to change its size.

Calibration Images

Light Illusion's display set-up images, drawn by Calibration Client to fill the window at its own resolution, so they are always pixel-sharp, at 10-bit precision in the 10-bit modes. Use them to set the display's controls before profiling. They come in two groups.

Video level images - always shown at fixed levels, whatever the Range or Patch Scale setting. They are built around video black (16, or 64 at 10-bit) and video white (235, or 940), with detail below black and above white on purpose, so they show how the display handles levels outside the legal range:

  • Brightness Cal - set the black level (Brightness), with steps either side of video black
  • Contrast Cal - set the white level (Contrast), with steps either side of video white
  • Clipping - see where blacks and whites clip, with every step from full black to full white
  • Bars and Black - check data levels against video levels: the colour boxes hold both video level (legal) and data level (full range) colours, alongside black, white, a grey scale and colour ramps

Full scale images - their black and white are full range only because they were made for a full range PC display; nothing in them needs levels outside the legal range. So they follow the Range setting, as the test patterns do (on a video card, its ColourSpace Patch Scale setting), and Legal puts their black and white at video black and white:

  • Contrast Ratio - measure true (simultaneous) contrast, with a black and white checkerboard
  • Contrast Min/Max - black and white on mid grey
  • Sharpness Cal - set Sharpness, so there are no halos round the one-pixel lines
  • Grey - check grey balance with a probe
  • Colour Ramp 1-3 and BW Ramp - look for banding and artefacts
  • FALD Test - judge local dimming haloes and zones
  • Aspect Ratio - the circle must look round

HDR Patterns

Two strips of 100 grey steps on black, drawn at the output's own resolution in exact 10-bit PQ values. The steps touch, with no lines between them, so where neighbouring steps stop looking different is where the display clips or rolls off. Every 10th step is labelled in cd/m². The strips are thin (4% of the picture height each), so the display's brightness limiting (ABL) does not dim them. For viewing - measure with ColourSpace's patches.

  • HDR Steps - the upper strip rises evenly in PQ from near black to the mastering peak set in the HDR Metadata (1000 cd/m² when the metadata is off); the lower strip is the top 100 code values up to that peak, one 10-bit step each
    (Needs the patch window in 10-bit HDR (PQ), or a video card sending PQ. Switching to SDR ends it)
  • HDR Steps Metadata Cycle - steps up to 10,000 cd/m², while the video card's HDMI HDR metadata changes every 6 seconds: mastering peak and MaxCLL 600, 1000, 2000, 4000 and 10,000 cd/m², named on screen. It shows whether, and how, the display's tone mapping follows the metadata
    (Video card sending PQ only, over HDMI - SDI does not carry these values. Some displays blank briefly at each change. Choosing anything else returns the card to the HDR Metadata set in the menu)

Both follow the Range setting (on a video card, its ColourSpace Patch Scale): Legal puts the codes in 64-940.

Signal Checks

Three patterns, under Signal checks in the Pattern list, show whether the path from Calibration Client to the display's panel keeps the picture intact. They are drawn at the output's own resolution, so every line is exactly one pixel, and they check the whole chain - the video card or PC, any converters or AV receivers, and the display's own processing.

  • Chroma Check - red and blue one-pixel lines: vertical, horizontal and a checkerboard, next to a magenta block. With full colour resolution (RGB or YCbCr 4:4:4) all three show crisp red and blue lines. With 4:2:2 the vertical lines and the checkerboard blur towards the magenta block; with 4:2:0 the horizontal lines blur too
  • Pixel Check - a one-pixel white border, with blocks of one-pixel lines in the corners and a checkerboard in the centre. The whole border must be visible (no overscan), and the lines must stay sharp and even, with no moiré or grey smearing (no scaling)
  • Bit Depth Check - two dark grey ramps: the upper one in single 10-bit steps, the lower one the same ramp in 8-bit steps. If the upper ramp looks smoother than the lower one, 10-bit reaches the panel; if both show the same steps, something in the chain is cutting the signal to 8-bit (or the display is dithering it)
    (Needs a 10-bit output: the patch window in a 10-bit mode, or a video card. It is refused in the 8-bit window mode, and ends on a switch to it)

All three follow the Range setting (on a video card, its ColourSpace Patch Scale): Legal uses 16-235 (64-940 at 10-bit), Full 0-255. With Apply LUT on, they go through the calibration LUT like everything else - turn it off to check the signal path itself.

Your Own Images

  • Copy TIFF, PNG, TGA or JPG images into the Patterns folder - the button in the menu opens it - and choose them from the Image list, or use Open image... for a file anywhere on the PC
  • Images are shown untouched - no colour management, gamma or filtering - and are never scaled: each image pixel is one screen pixel (1:1), centred on black
  • 8-bit images give 8-bit values; 16-bit PNG and TIFF images give 10-bit values, so need a 10-bit output mode
    (An image or pattern that cannot be shown - such as a 16-bit image in the 8-bit mode - is refused, and the screen stays as it was. The menu then opens with the reason in amber, and the reason is also shown in the window title and the warnings list)

Video Clips

With Calibration Client Full, video clips can be played with sound - for watching real footage after a calibration, and for checking lip-sync and motion through the signal chain. This is for viewing, not for measurement: clips are decoded, converted and scaled to fit, as with any media player.

  • Copy MP4, MKV, MOV, M4V, TS / M2TS or MXF clips into the Patterns folder - they are listed with the images - or open one from anywhere with Open image.... A clip plays, looping, until anything else is shown or ColourSpace sends a patch
  • Clips are decoded by Windows itself: H.264 is built in, and HEVC needs Microsoft's free HEVC Video Extensions from the Microsoft Store. 10-bit HEVC is decoded at 10-bit, and each clip's own colour information (BT.709 or BT.2020, matrix and range) is used
  • In the patch window - the output mode must suit the clip: HDR10 (PQ) clips need 10-bit HDR (PQ), and SDR clips an SDR mode; anything else is refused, with the reason. HLG clips play only through a video card, as Windows can only send PQ. The sound plays on the PC's sound output, with the picture following it, held back by the A/V test's PC delay correction so picture and sound leave the PC together
    (If the PC cannot keep up, late pictures are skipped rather than letting picture and sound drift apart - the menu shows how many)
  • Through a video card - the card plays the clip continuously at its own frame rate, with the sound carried in its SDI / HDMI signal. The card keeps its resolution, and the picture is scaled to it, but switches to the clip's frame rate (or twice it) when it offers that format. Its signal follows the clip: SDR, HDR10 (PQ) with the clip's own HDR metadata, or genuine HLG. The window shows a preview, and when the clip ends the card returns to the settings in the menu
    (4K at 50 or 60 fps needs a fast PC: on a slower one, some pictures are skipped)
  • With Apply LUT on, clips go through the calibration LUT too, in the patch window and on a video card alike. Turning the LUT on or off takes effect while the clip plays
    (Clips use a fast form of the same LUT maths, still tetrahedral, within one code value of the exact form used for patches - clips are for viewing)

A/V Sync Test

The A/V sync test checks that sound and picture arrive together through the display or AV receiver (lip-sync). Choose A/V Sync from the Pattern list (under Sound): once a second the screen flashes white and a short 1 kHz beep plays, lasting exactly as long as the flash. The first flash comes 2 seconds after the start, so the display or AV receiver has locked on to the sound first. The Sound setting plays the beep in sync, or deliberately 20, 40, 60, 80 or 100 ms early or late. In HDR the flash is at HDR reference white, not the signal's peak.

  • With a video card - the card plays the test continuously at its own frame rate, with the beep carried in its SDI / HDMI signal on exactly the same frames as the flash, so the timing is exact. The PC's speakers stay silent
    (Make sure the display or AV receiver plays the sound from the SDI / HDMI input. Choosing any other pattern, or a patch from ColourSpace, stops the test and returns the card to normal)
  • In the window - the beep plays on the PC's own sound output. Windows and the graphics card add their own sound and picture delays, which Calibration Client cannot read, so set the PC delay correction: with the display (or AV receiver) set to no lip-sync delay, show In sync (0 ms), measure how late the sound arrives, and enter it (negative if the sound is early). That correction holds for that PC, sound output and display
    (Without it, the window can show whether a change makes lip-sync better or worse, but not an exact figure - for that, use a video card)
  • With a light and sound sync meter held to the centre of the screen, In sync (0 ms) measures the delay of the signal chain directly
  • No sync meter? Film the screen with a phone or camera, recording sound, load the video into any video editor that shows an audio waveform on its timeline, and step frame by frame from the first frame of a flash to the start of the beep on the waveform. The number of frames times the frame time is the delay (at 60 fps, one frame is 16.7 ms; at 30 fps, 33.3 ms)
    (Use a fast frame rate on the camera if it has one: the finer the frames, the more exact the reading)
  • By eye and ear, try the early and late settings - the one that looks and sounds in sync shows how far out the chain is. For example, if Sound 40 ms late looks right, the display delays the picture 40 ms more than the sound, so set the display's or AV receiver's lip-sync (audio delay) setting to delay the sound by 40 ms, after which In sync (0 ms) should look right
  • Late sound is much harder to notice than early sound - viewers notice sound about 45 ms early, but only about 125 ms late (ITU-R BT.1359) - so by eye and ear Sound 100 ms late can look almost in sync, especially in the window, where the picture usually reaches the screen later than the PC's sound. Compare the early and late settings with each other, or measure as above
  • Some computer monitors pass their sound through noise reduction or "voice clarity" processing, which treats a repeated beep as noise: beeps then fade, vanish and come back. A TV or AV receiver is a better test

Live Demos

Five moving demos, drawn live rather than played from files: at the output's own resolution and frame rate, with exact code values, and with the sound worked out on the same clock as the picture. On a video card they play continuously, locked to the card's own frames, with any sound carried in its SDI / HDMI signal; in the patch window they run on the window's own clock, with the sound on the PC's sound output (using the PC delay correction, as the A/V sync test). Choosing any other pattern, or a patch from ColourSpace, stops them.

  • Lip Sync (under Sound) - the A/V sync flash and beep, using the Sound setting (named on screen), with a marker sweeping across a scale from -500 to +500 ms, the flash in the middle, and a time code (the frame number on a video card). Film the screen and step through the video in any editor with an audio waveform: where the marker is when the beep starts shows directly whether the sound is early (left of the middle) or late (right), and by how much
  • Sound Check (under Sound) - left, right, then both channels (a 1 kHz tone at -20 dBFS), a sweep from 20 Hz to 20 kHz with the frequency shown, and pink noise, with captions: checks that the channels are the right way round and the sound path works. A 40-second loop, after a 2-second silent start
  • Motion (under Signal checks) - scrolling text, a moving bar and a row of boxes lighting one per frame: judder, dropped or repeated frames and frame-rate conversion show at once. In a photo with a fast shutter, a gap or two lit boxes shows a dropped or repeated frame
  • HDR10 1000 nits and HDR10 4000 nits (under HDR (PQ)) - grey steps at known brightness, BT.2020 colour bars and captions at HDR reference white (203 cd/m², ITU-R BT.2408), a ramp even in PQ and a moving highlight at the mastering peak, in exact 10-bit PQ values. The 4000 nits version shows how the display handles content above its own peak
    (Need the patch window in 10-bit HDR (PQ), or a video card sending PQ. On a video card the HDR metadata sent is the demo's own - mastering peak and MaxCLL 1000 or 4000 cd/m² - and the values set in the menu return afterwards. The window cannot send it: Windows sends its own HDR metadata)

Video Cards

Cards and Thunderbolt units: on this page, and in Calibration Client's menu, a video card means any AJA or Blackmagic video output device - a card fitted inside the PC (PCIe), or a small external unit connected by Thunderbolt. Both kinds use the same manufacturer's driver and work in exactly the same way in Calibration Client.

With the Hardware option, Calibration Client sends the patches out of the SDI and HDMI outputs of an AJA or Blackmagic video card or Thunderbolt unit, as well as to the patch window, which keeps showing the same patches with the menu. The video card path does not go through the PC's display settings, so the values reach the SDI and HDMI cables exactly.

Video Cards

Supported Cards and Thunderbolt Units

  • AJA - Kona and Corvid PCIe cards, and Io and T-Tap Thunderbolt units, with AJA's driver (AJA Desktop Software) installed
    (4K needs a card that sends 4K over a single cable, such as the Kona 5 (with its 8K or 2x4K firmware, selected in AJA's software - its standard firmware sends 4K over four cables), Kona X, Io X3, T-Tap Pro and Corvid 44 12G. Older cards that need four cables for 4K can send HD only)
  • Blackmagic - DeckLink PCIe cards, and UltraStudio Thunderbolt units, with Blackmagic's driver (Desktop Video 16 or later) installed
    (4K where the card sends it over a single SDI or HDMI connection, such as the DeckLink 8K Pro, DeckLink 4K Extreme 12G and UltraStudio 4K Mini. Capture-only models, such as the DeckLink Mini Recorder and UltraStudio Recorder 3G, cannot be used)

A Thunderbolt unit needs a PC with a Thunderbolt port. Windows may ask for a new Thunderbolt device to be approved the first time it is connected.

Each card reports the formats it can send, and only those are listed, so the card itself decides what is possible.

Using a Video Card

  • In the Video card section of the menu, choose the card
    (None - patch window only)
  • Choose the signal - YCbCr 4:2:2 or RGB 4:4:4
    (RGB 4:4:4 is only offered when the card can send it)
  • Choose the Format - 720p, 1080i, 1080p or 2160p, at the frame rates the card can send with the chosen signal
  • Choose SDR, PQ or HLG
  • Set the ColourSpace Patch Scale option to match the ColourSpace Patch Scale - Legal is recommended

The Signal

  • YCbCr 4:2:2 (the default) - 10-bit, Legal range, the standard professional video signal - calculated exactly by Calibration Client from ColourSpace's values (Rec.709 for SDR, Rec.2020 for HDR), and passed through the card untouched
  • RGB 4:4:4 - 10-bit, ColourSpace's values sent unchanged, in its Patch Scale range (Legal or Full), with the range signalled on SDI and HDMI
    (SDI reserves codes 0-3 and 1020-1023, so Full range values there go out as 4 and 1019)
  • RGB 4:4:4 over SDI uses single, dual or quad link as the format needs:
    • AJA - 3G-SDI dual link on one cable, for HD formats up to 30 frames per second, 1080i and 720p, plus RGB on HDMI
      (Not every SDI output can carry RGB on every card - on the Kona 5, for example, RGB goes to SDI 1, 3 and 4. Calibration Client uses the outputs that can, and lists them in the menu and the Diagnostic report)
    • Blackmagic - the card's own 4:4:4 SDI output, with the link chosen to suit the format and card (for example, a 12G card sends up to 2160p30 on one link, and 2160p50/60 on two)
      (Blackmagic's driver always labels HDMI RGB as Limited range, whatever is sent - DaVinci Resolve shows the same. So with an HDMI display, use Legal, or set the display to Full by hand; Calibration Client shows a note when Full is chosen)
  • SDR, PQ and HLG are signalled in the SDI payload ID and, on HDMI, with the HDR InfoFrame, using the HDR metadata values
  • In YCbCr, with Patch Scale set to Legal, ColourSpace's values go out exactly; Full values are scaled into the legal range. Test patterns on the card follow the same setting
  • Every SDI output and the HDMI output carry the signal (for 4K, the first SDI output and HDMI)

Anything the card cannot do - a format, or 4K on an older card - is refused with the reason, never swapped for something else.

Diagnostic Report

The Diagnostic report button saves a text file listing the card, its driver and firmware, the settings in use and every set-up step. With AJA cards, each frame is also read back from the card and checked against what was sent. If something doesn't work as expected, send this file with your support request.

Additional Info.

ColourSpace Integrated User Forums
