Correlation Files for Calibrite/Xrite Colorimeters



Page  Page 1 of 3:  1  2  3  Next »

Author ConnecTED
LTE
#1 | Posted: 2 May 2023 11:44


The ColourSpace 1.0.0.1629 (22 April 2023) release has replaced the Calibrite/X-Rite integration with an open-source solution. including for ZRO.

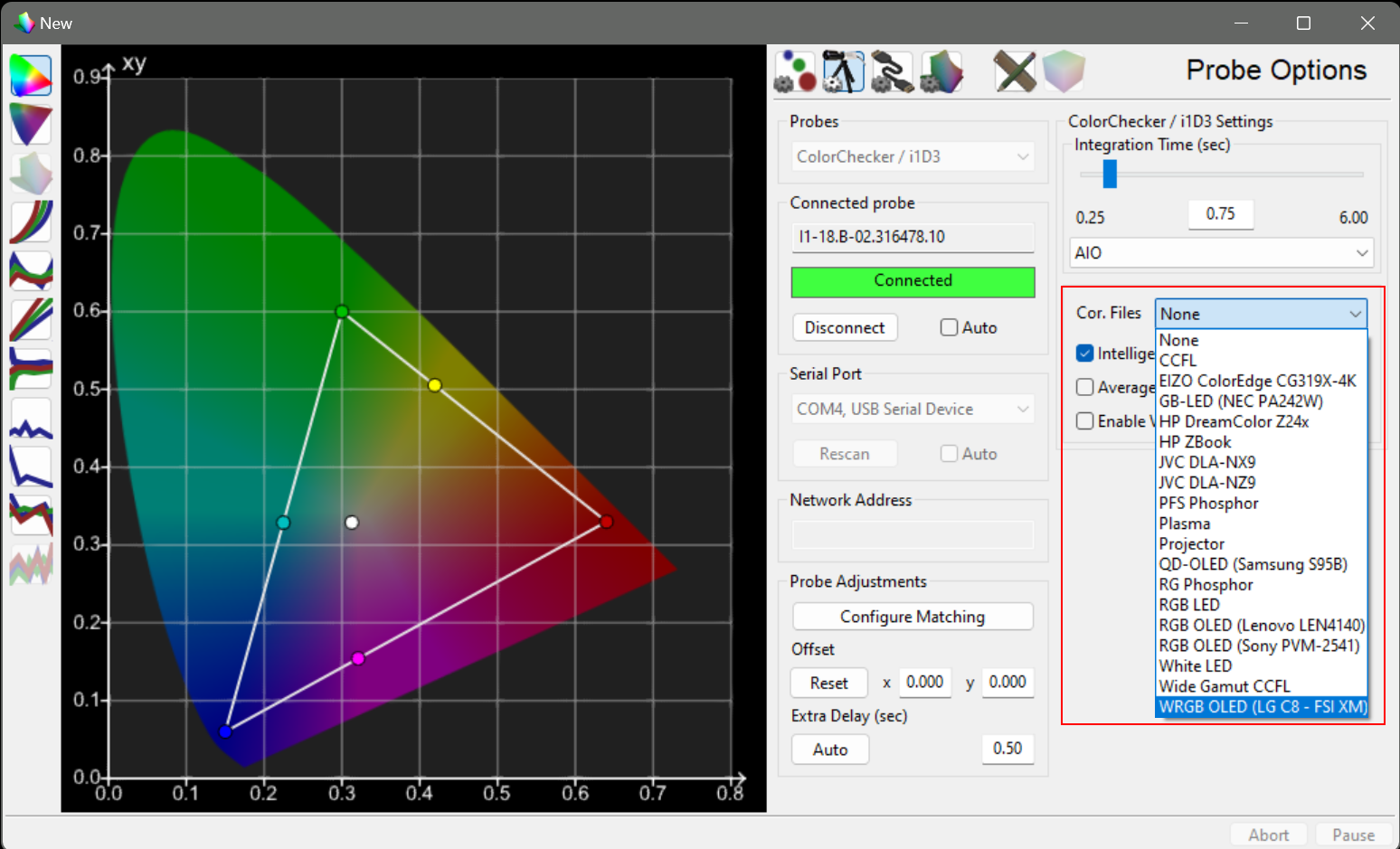

The software will be able to connect as 'ColorChecker/i1D3' with the following colorimeters:

X-Rite i1Display Pro OEM

Calibrite ColorChecker Display / Calibrite ColorChecker Display Pro / Calibrite ColorChecker Display Plus

X-Rite ColorMunki Display / X-Rite i1Display Studio

X-Rite i1Display PRO Retail / X-Rite i1Display PRO Plus Retail

SpectraCAL C6 / C6-HDR / C6-HDR2000, or Portrait Displays C6-HDR2000

HP DreamColor / NEC SpectraSensor Pro / Quato Silver Haze 3

Wacom Color Manager / ASUS ProArt i1Display PRO

Correlation Files

This ColourSpace release also supports Spectral Correlation files with CVS file format.

The ColourSpace 1.0.0.1629 (22 April 2023) or newer, will only contain a single example WOLED Cor. File with the installation.

ColourSpace users have to download the new CVS files and paste them inside the 'i1D3 Support Files' folder within the ColourSpace installation folder.

NOTE: If you have upgraded to ColourSpace 1.0.0.1629 (22 April 2023) from an older release, you can delete, if you want, the contents of the 'i1D3 Support Files' folder before pasting the new files. (...for not having duplicates).

Download Link: ColorChecker-i1D3 Spectral CVS Files (01 May 2023)

The ZIP contains the following Spectral Correlation files:



(The users can rename the file names if they want to...)

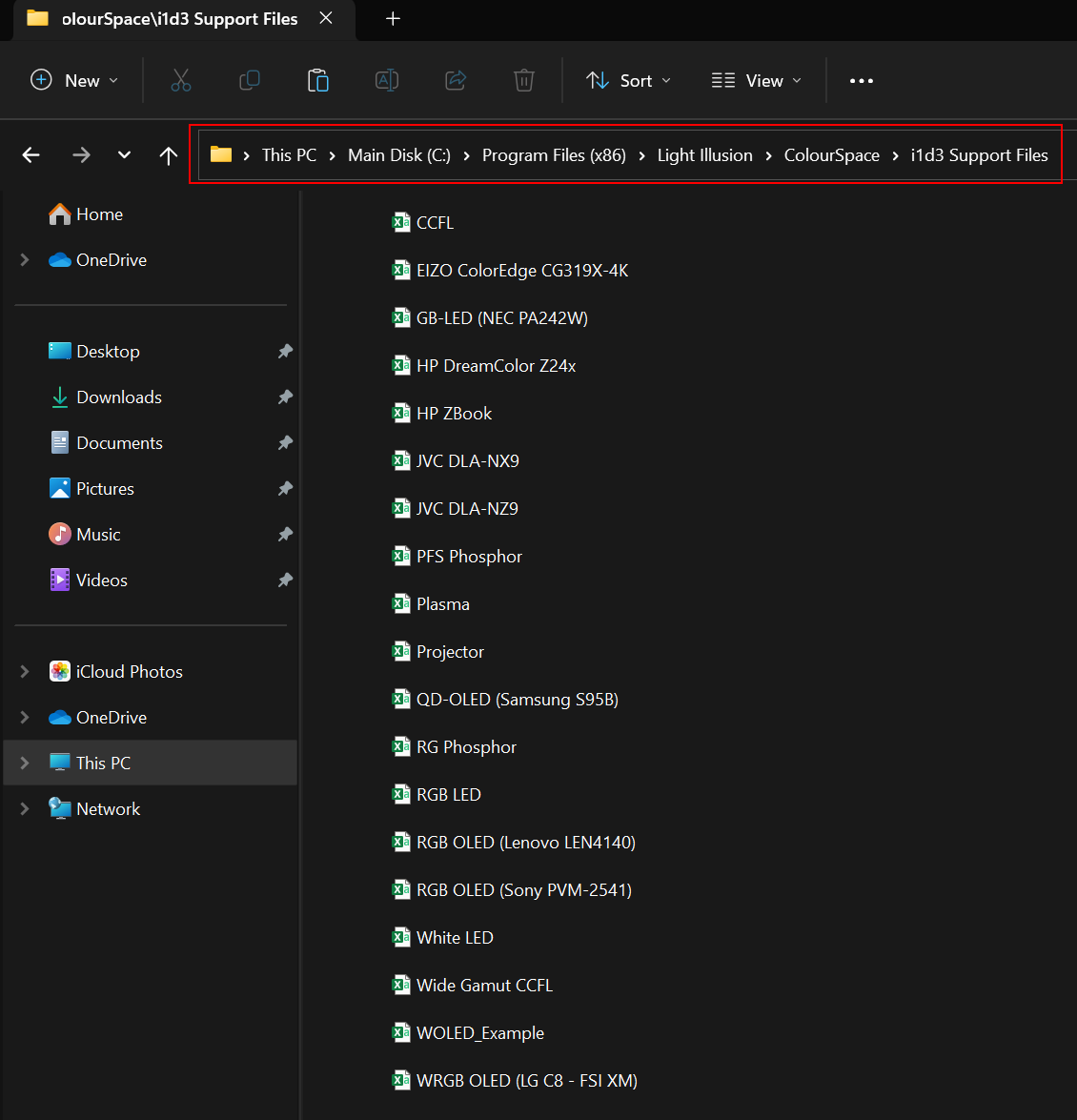

Please extract those files and paste the CVS files into that folder:

The path after installation 'for all users':

C:\Program Files (x86)\Light Illusion\ColourSpace\i1d3 Support Files

or

The path after installation 'only for current user':

C:\Users\your-user-name\AppData\Local\Programs\Light Illusion\ColourSpace\i1d3 Support Files

Spectral Correlation Files Info

The Spectral Correlation files are simple CVS files, with a minimum of 3 lines, with each line being 401 floating point values.

The values need to be 380 to 780 nm in 1 nm increments, in Watts per Nm.

OMARDIS has converted the EDR files to the new CVS format.

Some old EDR files only covered 380-730nm, the data from 731 to 780 were obtained using linear extrapolation. (It's the recommended procedure according to the CIE)

Custom Spectral Correlation Files Info

It is important to note that the range of 380 to 780nm and the spacing of 1nm is mandatory.
If available data only goes to 730nm, pad with zeros.

For the user who wants to create their own CVS files with a spectro without 1nm resolution (i1PRO1/2/3), the spectral data must be interpolated to 1nm.

OMARDIS can help for converting new EDR or CCSS files to ColourSpace's CVS Correlation format; we are interested in adding to the ZIP new spectral correction files from hi-end spectro's, at this time. Please get in touch with Ted for more details.

Other Sources for Correlation Files

Spectral data for different displays can be accessed from different sources, such as via colorimetercorrections.

The data will need to be reformatted into the correct ColourSpace Correlation File format, which is simple to perform.
ColourSpace Correlation files are simple .csv files, with a minimum of 3 lines/rows, with each line being 401 floating point values.
The values need to be 380nm to 780nm in 1nm increments, in Watts per Nm. If available data only goes to 730nm, pad with zeros.
For conversion of spectral data that is not in 1nm increments ccss2edr can be used.

Note: Correlation files should not be relied on for calibration accuracy, as they apply a relative correction to the i1D3's underlying factory calibration, not an absolute correction, meaning the underlying accuracy of the i1D3 is not improved. This can be seen specifically with Y measurements.
The use of Probe Matching to a Spectro is always recommended, using ColourSpace's unique probe matching capabilities.


See the Correlation Files & Accuracy modal within the i1Display Pro/Calibrite page of the website.

Author ConnecTED
LTE
#2 | Posted: 8 May 2023 08:25
ColourSpace Correlation Files for Calibrite/X-Rite Colorimeters (Update)

Added LG G3 Spectral Correction File from 77G3 (JETI 1501)

Download Link: ColorChecker-i1D3 Spectral CVS Files (08 May 2023)

Author ConnecTED
LTE
#3 | Posted: 29 May 2023 08:13
Correlation Files for Calibrite/X-Rite Colorimeters (Update)

Replaced the 'single' JVC DLA-NX9 and the JVC DLA-NZ9 files with different filter laser (or lamp) combination

JVC DLA-NX9 (High Lamp - Filter Off)
JVC DLA-NX9 (High Lamp - Filter On)
JVC DLA-NX9 (Low Lamp - Filter Off)
JVC DLA-NX9 (Low Lamp - Filter On)

JVC DLA-NZ9 (High Laser - Filter Off)
JVC DLA-NZ9 (High Laser - Filter On)
JVC DLA-NZ9 (Low Laser - Filter Off)
JVC DLA-NZ9 (Low Laser - Filter On)
JVC DLA-NZ9 (Mid Laser - Filter Off)
JVC DLA-NZ9 (Mid Laser - Filter On)

KarlKlammer (Qalif Spectro) has provided those spectral correction data using the following setups and OMARDRIS has created the CVS files.

JVC DLA-NX9 projector with Stewart Cima Neve 110" screen. (more info)

JVC DLA-NZ9 projector with Stewart Cima Neve 110" screen. (more info)

Omarank_ind processed that raw data to compute 1nm bandwidth spectral data files.

Instructions

Download Link: ColorChecker-i1D3 Spectral CVS Files (28 May 2023)

Author andrewhueb
ZRO
Male
#4 | Posted: 30 May 2023 21:43
Hi Ted - are there plans to include correlation files for the LG 32/27EP950-B (for i1D3)?

Andrew

Author RollsRoyce
DPS
#5 | Posted: 31 May 2023 17:05
andrewhueb
Maybe not PLANS as such, but if someone with a suitable high-end spectro creates such a measurement and submits it for conversion, it'll probably be included. Currently, it looks like a very small cadre of people are involved in providing these, and the majority were converted from existing EDR files.

Author ColorCal

ZRO
Male
#6 | Posted: 19 Jun 2023 11:56
I've been messing around with a couple of old i1D3 probes I've acquired over time, and stumbled across this program.
The Clone_i1D3 program specifically.
Anyone else tried it out?

Author GammaLyrae
ZRO
#7 | Posted: 2 Jul 2023 00:54
For the "LG G3 Spectral Correction File from 77G3 (JETI 1501)" - Is this a "WBE" panel?

I can't find a reliable source that can state whether or not the G3/C3/etc model year of LG TVs universally uses WBE panels or not.

Reason I'm asking is that I have an LG C2, which I know is using a WBE panel thanks to a service menu check.

I had thought that perhaps a JETI 1501 operating in its native or HiRes 2nm mode would be capable of generating a better correlation file than my i1Pro3 (out of the box operates in 10nm mode, though I believe there is a 5nm mode that some software can access, a function that's not officially supported....), even if that correlation was taken off of a different panel than mine.

Author ConnecTED
LTE
#8 | Posted: 2 Jul 2023 11:26
GammaLyrae

G3 or C3 are using a WBE panel.

However, the G3 has an additional MLA layer, but the Its a WBE panel, and so is the C3. The G3 has SPD should be the same between G3 and C3.

JETI 1501 has 4.5 nm; it doesn't have HighRes mode.

If you want to convert the 1501 to 1501 HiRes, you have to send the meter to the factory and pay about 4K euros.

For the G3 correction, as you can see, its used the JETI 1501, not the JETI 1501 HiRes.

JETI 1501 HiRes has 2nm.

i1PRO3 is 10nm, and you can't trust the 3.3 nm mode that X-Rite does not support.

It's unknown if the 3.3 mode (not an official mode) will be more accurate than the 10nm.

The previous discussion with X-Rite indicated it would cause measurement errors, especially with wide-gamut displays.

It's why X-Rite doesn't offer a high-res option themselves, so be very careful if you use that mode.

But there is no way to see if you get any improvement with the 3.3nm unless you verify and compare with a high-end 5nm spectro.

Author ConnecTED
LTE
#9 | Posted: 23 Sep 2023 17:52
Correlation Files for Calibrite/X-Rite Colorimeters (Update)

Added:

JOLED (ASUS PA32DC) using a Colorimetry Research CR-250.

JOLED (LG 32EP950) using a Colorimetry Research CR-250.

QD-OLED (Samsung S95C) using a Colorimetry Research CR-250. (source)

QD-OLED (Sony A95K) using a JETI 1501 Hi-Res.

Instructions

Download Link: ColorChecker-i1D3 Spectral CVS Files (23 September 2023)

Author ConnecTED
LTE
#10 | Posted: 26 Sep 2023 17:17
Correlation Files for Calibrite/X-Rite Colorimeters (Update)

Added new files directly from BenQ:

BenQ PV270
BenQ SW270C
BenQ SW271C
BenQ SW272Q
BenQ SW272U
BenQ SW321C

Instructions

Download Link: ColorChecker-i1D3 Spectral CVS Files (26 September 2023)

Author ConnecTED
LTE
#11 | Posted: 23 Oct 2023 23:21
Correlation Files for Calibrite/X-Rite Colorimeters (26 October 2023 Update)

Added the spectral correction for Mini LED (TCL C825) (Colorimetry Research CR-250)

The ZIP contains the following Spectral Correlation files:

BenQ PV270
BenQ SW270C
BenQ SW271C
BenQ SW272Q
BenQ SW272U
BenQ SW321C
CCFL
EIZO ColorEdge CG319X-4K
GB-LED (NEC PA242W)
HP DreamColor Z24x
HP ZBook
JOLED (ASUS PA32DC)
JOLED (LG 32EP950)
JVC DLA-NX9 (High Lamp - Filter Off)
JVC DLA-NX9 (High Lamp - Filter On)
JVC DLA-NX9 (Low Lamp - Filter Off)
JVC DLA-NX9 (Low Lamp - Filter On)
JVC DLA-NZ9 (High Laser - Filter Off)
JVC DLA-NZ9 (High Laser - Filter On)
JVC DLA-NZ9 (Low Laser - Filter Off)
JVC DLA-NZ9 (Low Laser - Filter On)
JVC DLA-NZ9 (Mid Laser - Filter Off)
JVC DLA-NZ9 (Mid Laser - Filter On)
Mini LED (TCL C825)
PFS Phosphor
Plasma
Projector
QD-OLED (Samsung S95B)
QD-OLED (Samsung S95C)
QD-OLED (Sony A95K)
RG Phosphor
RGB LED
RGB OLED (Lenovo LEN4140)
RGB OLED (Sony PVM-2541)
White LED
Wide Gamut CCFL
WRGB OLED (LG C8 - FSI XM)
WRGB OLED (LG G3)

Instructions

Download Link: ColorChecker-i1D3 Spectral CVS Files (24 October 2023)

Author RollsRoyce
DPS
#12 | Posted: 24 Oct 2023 12:40
Ted, the list you posted shows 28 correlation files. But the actual download only contains 16...

Author ConnecTED
LTE
#13 | Posted: 24 Oct 2023 21:23
Thank you for checking, I have re-upload the correct ZIP.

Author ConnecTED
LTE
#14 | Posted: 27 Oct 2023 22:41
Correlation Files for Calibrite/X-Rite Colorimeters (28 October 2023 Update)

Added the spectral corrections for the following FSI monitors:

FSI DM160
FSI DM211
FSI DM220
FSI DM231

Those correction files are provided directly from FSI, using a Colorimetry Research CR-300.

The ZIP contains the following 42 Spectral Correlation files:

BenQ PV270
BenQ SW270C
BenQ SW271C
BenQ SW272Q
BenQ SW272U
BenQ SW321C
CCFL
EIZO ColorEdge CG319X-4K
FSI DM160
FSI DM211
FSI DM220
FSI DM231
GB-LED (NEC PA242W)
HP DreamColor Z24x
HP ZBook
JOLED (ASUS PA32DC)
JOLED (LG 32EP950)
JVC DLA-NX9 (High Lamp - Filter Off)
JVC DLA-NX9 (High Lamp - Filter On)
JVC DLA-NX9 (Low Lamp - Filter Off)
JVC DLA-NX9 (Low Lamp - Filter On)
JVC DLA-NZ9 (High Laser - Filter Off)
JVC DLA-NZ9 (High Laser - Filter On)
JVC DLA-NZ9 (Low Laser - Filter Off)
JVC DLA-NZ9 (Low Laser - Filter On)
JVC DLA-NZ9 (Mid Laser - Filter Off)
JVC DLA-NZ9 (Mid Laser - Filter On)
Mini LED (TCL C825)
PFS Phosphor
Plasma
Projector
QD-OLED (Samsung S95B)
QD-OLED (Samsung S95C)
QD-OLED (Sony A95K)
RG Phosphor
RGB LED
RGB OLED (Lenovo LEN4140)
RGB OLED (Sony PVM-2541)
White LED
Wide Gamut CCFL
WRGB OLED (LG C8 - FSI XM)
WRGB OLED (LG G3)

Instructions

Download Link: ColorChecker-i1D3 Spectral CVS Files (28 October 2023)

Author ConnecTED
LTE
#15 | Posted: 1 Nov 2023 13:16
Correlation Files for Calibrite/X-Rite Colorimeters (31 October 2023 Update)

I have renamed all the files; now they contain information about which spectro has been used for those measurements.

Please delete the older files for not having duplicates.

Added the following ten spectral corrections (SirMaster took those measurements, thanks!):

Epson Pro Cinema LS12000 (Laser Projector) - JETI 1511 HiRes 2nm
JVC DLA-NP5 (Lamp Projector ) - JETI 1511 HiRes 2nm
JVC DLA-NZ7 (Laser Projector) - JETI 1511 HiRes 2nm
JVC DLA-NZ8 (Lazer Projector - Filter Off) - JETI 1511 HiRes 2nm
JVC DLA-NZ8 (Lazer Projector - Filter On) - JETI 1511 HiRes 2nm
Sony VPL-XW5000ES (Laser Projector) - JETI 1511 HiRes 2nm
Sony VPL-XW6000ES (Laser Projector) - JETI 1511 HiRes 2nm
Sony VPL-XW7000ES (Laser Projector) - JETI 1511 HiRes 2nm
Samsung S90C (RGB QD-OLED) - JETI 1511 HiRes 2nm
LG CX (WRGB OLED) - Konica Minolta CS-1000 5nm

The ZIP contains the following 52 Spectral Correlation files:

ASUS PA32DC (RGB JOLED) - Colorimetry Research CR-250 4nm
BenQ PV270 (GB-R LED)
BenQ SW270C (W-LED)
BenQ SW271C (W-LED)
BenQ SW272Q (W-LED)
BenQ SW272U (W-LED)
BenQ SW321C (W-LED)
CCFL - Konica Minolta CS-1000 5nm
EIZO ColorEdge CG319X-4K (W-LED)
Epson Pro Cinema LS12000 (Laser Projector) - JETI 1511 HiRes 2nm
FSI DM160 (RGB OLED) - Colorimetry Research CR-300 2nm
FSI DM211 (W-LED) - Colorimetry Research CR-300 2nm
FSI DM220 (RGB OLED) - Colorimetry Research CR-300 2nm
FSI DM231 (W-LED) - Colorimetry Research CR-300 2nm
HP DreamColor Z24x (GB-r LED) - Konica Minolta CS-1000 5nm
HP ZBook (PSR LED) - Konica Minolta CS-1000 5nm
JVC DLA-NP5 (Lamp Projector ) - JETI 1511 HiRes 2nm
JVC DLA-NX9 (Lamp Projector - High Lamp - Filter Off) - Qalif Spectro 1.8nm
JVC DLA-NX9 (Lamp Projector - High Lamp - Filter On) - Qalif Spectro 1.8nm
JVC DLA-NX9 (Lamp Projector - Low Lamp - Filter Off) - Qalif Spectro 1.8nm
JVC DLA-NX9 (Lamp Projector - Low Lamp - Filter On) - Qalif Spectro 1.8nm
JVC DLA-NZ7 (Laser Projector) - JETI 1511 HiRes 2nm
JVC DLA-NZ8 (Lazer Projector - Filter Off) - JETI 1511 HiRes 2nm
JVC DLA-NZ8 (Lazer Projector - Filter On) - JETI 1511 HiRes 2nm
JVC DLA-NZ9 (Laser Projector - High Laser - Filter Off) - Qalif Spectro 1.8nm
JVC DLA-NZ9 (Laser Projector - High Laser - Filter On) - Qalif Spectro 1.8nm
JVC DLA-NZ9 (Laser Projector - Low Laser - Filter Off) - Qalif Spectro 1.8nm
JVC DLA-NZ9 (Laser Projector - Low Laser - Filter On) - Qalif Spectro 1.8nm
JVC DLA-NZ9 (Laser Projector - Mid Laser - Filter Off) - Qalif Spectro 1.8nm
JVC DLA-NZ9 (Laser Projector - Mid Laser - Filter On) - Qalif Spectro 1.8nm
Lenovo LEN4140 (RGB OLED) - Konica Minolta CS-1000 5nm
LG 32EP950 (RGB JOLED) - Colorimetry Research CR-250 4nm
LG C8 - FSI XM (WRGB OLED) - Colorimetry Research CR-300 2nm
LG CX (WRGB OLED) - Konica Minolta CS-1000 5nm
LG G3 (WRGB OLED) - JETI 1501 4.5nm
NEC PA242W (GB-LED) - Konica Minolta CS-1000 5nm
PFS Phosphor - Konica Minolta CS-1000 5nm
Plasma - Konica Minolta CS-1000 5nm
Projector - Konica Minolta CS-1000 5nm
RG Phosphor - Konica Minolta CS-1000 5nm
RGB LED - Konica Minolta CS-1000 5nm
Samsung S90C (RGB QD-OLED) - JETI 1511 HiRes 2nm
Samsung S95B (RGB QD-OLED) - JETI 1501 4.5nm
Samsung S95C (RGB QD-OLED) - Colorimetry Research CR-250 4nm
Sony A95K (RGB QD-OLED) - JETI 1511 HiRes 2nm
Sony PVM-2541 (RGB OLED) - Konica Minolta CS-1000 5nm
Sony VPL-XW5000ES (Laser Projector) - JETI 1511 HiRes 2nm
Sony VPL-XW6000ES (Laser Projector) - JETI 1511 HiRes 2nm
Sony VPL-XW7000ES (Laser Projector) - JETI 1511 HiRes 2nm
TCL C825 (Mini LED) - Colorimetry Research CR-250 4nm
White LED - Konica Minolta CS-1000 5nm
Wide Gamut CCFL - Konica Minolta CS-1000 5nm

Instructions

Download Link: ColorChecker-i1D3 Spectral CVS Files (31 October 2023)

Page  Page 1 of 3:  1  2  3  Next »
You must be logged in to post content on this forum.
New Software Releases Light Illusion Forums / New Software Releases /
 Correlation Files for Calibrite/Xrite Colorimeters





Online now: Guests - 2
Members - 0
Max. ever online: 192 [11 Jan 2023 08:39]
Guests - 192 / Members - 0
