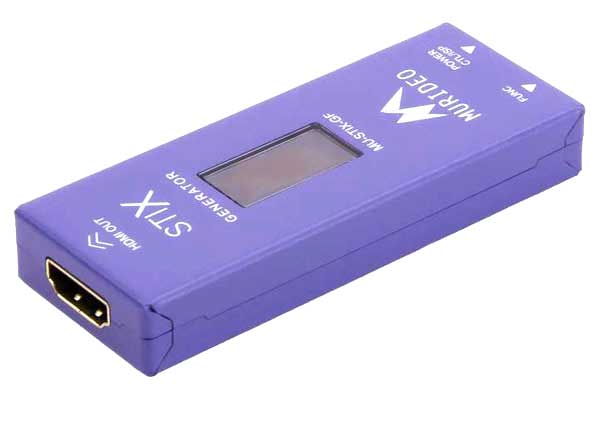

The STIX-G is a thumb drive-sized HDMI pattern generator that can be used for light-duty in-field pass/fail signal transmission verification, available with male or female connectors. It can also be used with Murideo's STIX Ecosystem large-deployment evaluation platform.
- HDMI 2.1b, 8K 48 Gbps (FRL) compliant
- 720p 60, 1080p 60, 4K 30/60/120 , 8K30/60
- RGB, 4:2:0, 4:2:2, & 4:4:4
- 8, 10, & 12-bit
- HDCP Off, 2.3 & 1.4 (1.4 TDMS only)
- 12 test patterns
- Male & Female connector options
- TPG Operation
Overview
The STIX-G is a convenient multi-resolution format generator for simple pass-fail transmission path and display capability verification, with video test patterns at resolutions from 720p/60 through 8K/60, including 4K/120 High Frame Rate. The mini OLED screen displays the pattern selected, resolution, bit rate, color space, and HDCP version.
The STIX-G is also designed for Murideo's STIX Ecosystem large-deployment evaluation platform.
Key Features
- HDMI 2.1
- HDCP 2.3 & 1.4
- 720p 60, 1080p 60, 4K 30/60/120 , 8K30/60
- RGB, 4:2:0, 4:2:2, & 4:4:4
- 8, 10, & 12-bit
- USB-C power, control, firmware
When used with the STIX-A, the combination becomes a linked calibration and testing system.
Murideo STIX Controller
Purchase Murideo STIX Controller
The STIX-CTL controller is a 48 port PSU unit that can have 48 STIX-G & STIX-A units plugged into for large scale testing using a web based UI.
